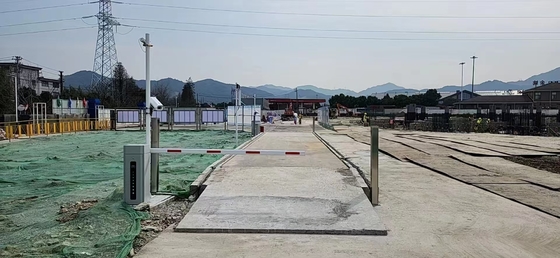

High Precision 15t Truck Weight Scale Portable Mobile Truck Scales 3*5m
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
15t Truck Weight Scale
,Mobile Truck Scales 3*5m
,15t Mobile Truck Scales
High Precision Truck Weighing Scale Weighbridge Portable Weigh Scales 3*5m 15t Weighbridge
Description:
The standard configuration of the truck scale is mainly composed of three main components: the load-bearing force transmission mechanism (scale body), the high-precision weighing sensor and the weighing display instrument, so that the basic weighing function of the truck scale can be completed, and it can also be based on different users. Demand, optional printer, large screen display, computer management system to complete the needs of higher level data management and transmission.
IDEAL FOR:
Applicable to metallurgy, mining, chemical, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
Drawing Parameters:
| Size | Section | Module(m) | Load cell Qty | Capacity(t) |
| 3x6 | 1 | (1.5+1.5)X6, 2pcs 1.5mX6m for each | 4 | 20/30 |
| 3x7 | 1 | (1.5+1.5)X7, 2pcs 1.5mX7m for each | 4 | 20/30 |
| 3x8 | 2 | (1.5+1.5)X4, 4pcs 1.5mX4m for each | 6 | 50/60 |
| 3x9 | 2 | (1.5+1.5)X(4.5+4.5), 4pcs 1.5mX4.5m for each | 6 | 50/60 |
| 3x10 | 2 | (1.5+1.5)X(5+5), 4pcs 1.5mX5m for each | 6 | 50/60 |
| 3x12 | 2 | (1.5+1.5)X(6+6), 4pcs 1.5mX6m for each | 6 | 50/60 |
| 3x14 | 3 | (1.5+1.5)X(5+4+5), 4pcs 1.5mX4m&2pcs 1.5mx5 for each | 8 | 50/60 |
| 3x16 | 3 | (1.5+1.5)X(5.3+5.3+5.3), 6pcs 1.5mX5.3m for each | 8 | 50/60 |
| 3x18 | 3 | (1.5+1.5)X(6+6+6), 6pcs 1.5mX6m for each | 8 | 50/60 |
| 3x20 | 4 | (1.5+1.5)X(5+5+5+5), 8pcs 1.5mX5m for each | 10 | 50/60 |
| 3x22 | 4 | (1.5+1.5)X(5.5+5.5+5.5+5.5),8pcs 1.5mX6m for each | 10 | 50/60 |
| 3x24 | 4 | (1.5+1.5)X(6+6+6+6), 8pcs 1.5mX6m for each | 10 | 50/60 |
Specification
1) 8mm thick checker plate or 10mm thick smooth plate
2) 300mm high U beam 4 pcs, 2 pcs C channel
3) with OIML approved double shear beam load cells
FAQ:
▷ How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
▷ Do you offer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
▷ What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
▷ When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
▷ How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
▷ Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
