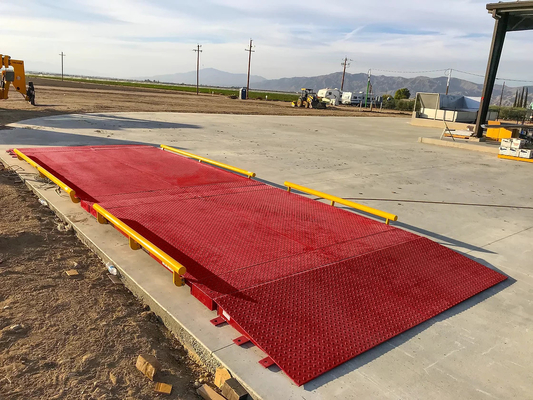

Highly Rated Portable Truck Weighing Bridge Truck Weighing Scale 30ton-150ton
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
Highly Rated Truck Weighing Bridge
,Highly Rated Truck Weighing Scale
,Truck Weighing Scale 150ton
Highly Rated Portable Weighbridge Electronic Weighing Truck Scale with Pit or Pitless 30ton-150ton Vehicle Weighing Scale
Description:
Truck scale is a device used to weigh a variety of cars. It can accurately measure the weight of a car,providing important data support for the automotive industry. So, how does the truck scale work?
The core component of the truck scale is the weight sensor, which measures the density of the car by detecting the weight of the car, and then calculates the weight of the car. The display of the truck scale will display the current value of the truck scale,and the data will be transmitted to the computer management system for subsequent data processing and analysis.
In addition to the weight sensor and display, the truck scale is also equipped with a variety of connections, such as sensor brackets, junction boxes, limit devices, etc., these components together constitute a complete truck scale system.
The installation site of the truck scale is usually divided into two kinds, one is the outdoor truck scale, generally installed in the highway, toll station and other places, for monitoring and management of vehicle import and export; The other is the indoor truck scale, which is generally installed in factories, warehousing and other places for weighing and controlling the weight of goods.
In short, the truck scale is a very important equipment, which provides accurate and efficient data support for the automotive industry, and plays an increasingly important role in modern society.
Drawing Parameters:
| Size | Section | Module(m) | Load cell Qty | Capacity(t) |
| 3x6 | 1 | (1.5+1.5)X6, 2pcs 1.5mX6m for each | 4 | 20/30 |
| 3x7 | 1 | (1.5+1.5)X7, 2pcs 1.5mX7m for each | 4 | 20/30 |
| 3x8 | 2 | (1.5+1.5)X4, 4pcs 1.5mX4m for each | 6 | 50/60 |
| 3x9 | 2 | (1.5+1.5)X(4.5+4.5), 4pcs 1.5mX4.5m for each | 6 | 50/60 |
| 3x10 | 2 | (1.5+1.5)X(5+5), 4pcs 1.5mX5m for each | 6 | 50/60 |
| 3x12 | 2 | (1.5+1.5)X(6+6), 4pcs 1.5mX6m for each | 6 | 50/60 |
| 3x14 | 3 | (1.5+1.5)X(5+4+5), 4pcs 1.5mX4m&2pcs 1.5mx5 for each | 8 | 50/60 |
| 3x16 | 3 | (1.5+1.5)X(5.3+5.3+5.3), 6pcs 1.5mX5.3m for each | 8 | 50/60 |
| 3x18 | 3 | (1.5+1.5)X(6+6+6), 6pcs 1.5mX6m for each | 8 | 50/60 |
| 3x20 | 4 | (1.5+1.5)X(5+5+5+5), 8pcs 1.5mX5m for each | 10 | 50/60 |
| 3x22 | 4 | (1.5+1.5)X(5.5+5.5+5.5+5.5),8pcs 1.5mX6m for each | 10 | 50/60 |
| 3x24 | 4 | (1.5+1.5)X(6+6+6+6), 8pcs 1.5mX6m for each | 10 | 50/60 |
Specification
1) 8mm thick checker plate or 10mm thick smooth plate
2) 300mm high U beam 4 pcs, 2 pcs C channel
3) with OIML approved double shear beam load cells
FAQ:
▷ How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
▷ Do you offer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
▷ What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
▷ When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
▷ How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
▷ Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
