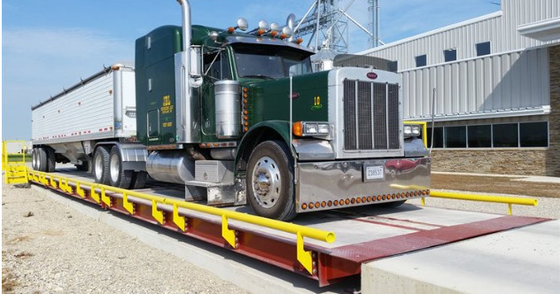

Low Profile Heavy Truck Weight Scale With Steel Deck 120T 100T 80T
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
120T Truck Weight Scale
,Truck Weight Scale With Steel Deck
,100T Truck Weight Scale
Heavy Truck Weight Scale With Steel Deck 120T 100T 80T
Description:
Steel Deck - 3/8” tread plate
Large top access covers for easy installation and service
Stainless steel compression column load cells, hermetically sealed (IP68/69K)
Dual calibration storage - download the calibration from the indicator to the load cells
Solid deck design resists deflection and metal fatigue.
Diamond tread, 1/4” thick deck plate promotes scale longevity.
Interlocking platform design for easy, one-day installation.
Low profile allows above-grade installation and shallow approaches.
Drawing Parameters:
| Size | Section | Module(m) | Load cell Qty | Capacity(t) |
| 3x6 | 1 | (1.5+1.5)X6, 2pcs 1.5mX6m for each | 4 | 20/30 |
| 3x7 | 1 | (1.5+1.5)X7, 2pcs 1.5mX7m for each | 4 | 20/30 |
| 3x8 | 2 | (1.5+1.5)X4, 4pcs 1.5mX4m for each | 6 | 50/60 |
| 3x9 | 2 | (1.5+1.5)X(4.5+4.5), 4pcs 1.5mX4.5m for each | 6 | 50/60 |
| 3x10 | 2 | (1.5+1.5)X(5+5), 4pcs 1.5mX5m for each | 6 | 50/60 |
| 3x12 | 2 | (1.5+1.5)X(6+6), 4pcs 1.5mX6m for each | 6 | 50/60 |
| 3x14 | 3 | (1.5+1.5)X(5+4+5), 4pcs 1.5mX4m&2pcs 1.5mx5 for each | 8 | 50/60 |
| 3x16 | 3 | (1.5+1.5)X(5.3+5.3+5.3), 6pcs 1.5mX5.3m for each | 8 | 50/60 |
| 3x18 | 3 | (1.5+1.5)X(6+6+6), 6pcs 1.5mX6m for each | 8 | 50/60 |
| 3x20 | 4 | (1.5+1.5)X(5+5+5+5), 8pcs 1.5mX5m for each | 10 | 50/60 |
| 3x22 | 4 | (1.5+1.5)X(5.5+5.5+5.5+5.5),8pcs 1.5mX6m for each | 10 | 50/60 |
| 3x24 | 4 | (1.5+1.5)X(6+6+6+6), 8pcs 1.5mX6m for each | 10 | 50/60 |
Specification
1) 8mm thick checker plate or 10mm thick smooth plate
2) 300mm high U beam 4 pcs, 2 pcs C channel
3) with OIML approved double shear beam load cells
Packing & Delivery:
Packing details: 1set in the wooden carton, Special packing accordingly to customer requirement.
Delivery time: shipped in 1-5days after received payment
