Stainless Steel Carbon Steel Bench Weighing Scale 150kg/10g 400x500x140mm IP65/IP54
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
Bench Weighing Scale 150kg
,Carbon Steel Bench Weighing Scale
,IP54 industrial bench scale

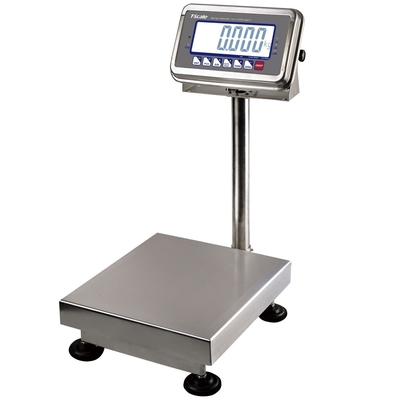

Stainless Steel Carbon Steel Bench Scale 150kg/10g, 400x500x140mm IP65/IP54
Feature:
1. Small and medium capacity electronic platforms scales with a stainless steel surface having a precise and sturdy structure. 2. Suitable for automatic weight checking systems for all industrial and commercial applications. The standard version is provided with approved load cell.
3. Weighing platform IP65 with stainless cover, indicator IP54. Upgrade of indicator to IP68 possible.
4. Aluminium load cell, approved according to OIML R60 C3 standards (3000 divisions), IP65 protection degree.
5. Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
6. Fitted with stainless steel loading surface.
7. Up to 15 Vdc power supply. Shielded cable for connection to the indicator.
Specification:
| Rated Load | 60/100/200/350/500kg |
| Rated Output | 2.0 mV/V±5% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02%R.O. |
| Hysteresis | 0.02%R.O. |
| Repeatability | 0.02%R.O. |
| Creep (30 minutes) | 0.02%R.O. |
| Return to Zero (30 minutes) | 0.02%R.O. |
| Safe Overload Rate | 150%R.O. |
| Ultimate Overload Rate | 200%R.O. |
| Output Temperature Effect | 0.002%R.O./°C |
| Zero Temperature Effect | 0.003%R.O./°C |
| Input Impedance | 410±15Ω:390±15Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000 M2/(50VDC) |
| Recommended Operating Voltage | 5-12 VDC |
| Maximum Operating Voltage | 15VDC |
| Operating Temperature Range | -20~60C |
| Material | Carbon steel, stainless steel |
| Protection Level | IP66/IP67 |
| Cable Length | Φ 5x1.5m |
| Recommended Table Size | 35X45cm;40X50cm |
| Wiring Method | Red: Power +, Black: Power - |
| Green: Signal +, White: Signal - |
