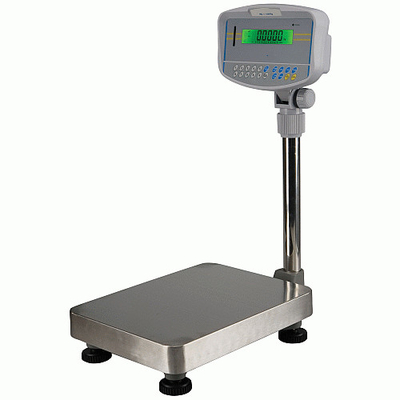

120KG Bench Weighing Scale Machine High Resolution And Precision
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
120KG Bench Weighing Scale
,120KG bench weighing machine
,High Resolution Bench Weighing Scale
120KG Bench Weighing Scale High Resolution And Precision
Feature:
1. Stainless steel platform, pillar, indicator, load cell and housing – easy to clean for food processing or harsh environments/washdown resistant
2. Heavy duty construction – will withstand harsh industrial operation
3. Reads in grams, pounds and pounds:ounces – flexibility of operation
4. Accumulation function – allows you to add together consecutive weights to arrive at a total
5. Wide angle backlit LCD display – can be seen from a wide viewing range
6. Built-in rechargeable battery and external power adapter – portability, battery lasts a minimum of 100 hours (without backlight)
7. Washdown
8. All Stainless Steel Base
9. Built for a variety of industries.
10. Offer all the features needed for weighing & check weighing.
11. Parts counting application.
12. Fully selectable sample or unit weight.
Specification:
| Rated Load | 60/100/200/350/500kg |
| Rated Output | 2.0 mV/V±5% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02%R.O. |
| Hysteresis | 0.02%R.O. |
| Repeatability | 0.02%R.O. |
| Creep (30 minutes) | 0.02%R.O. |
| Return to Zero (30 minutes) | 0.02%R.O. |
| Safe Overload Rate | 150%R.O. |
| Ultimate Overload Rate | 200%R.O. |
| Output Temperature Effect | 0.002%R.O./°C |
| Zero Temperature Effect | 0.003%R.O./°C |
| Input Impedance | 410±15Ω:390±15Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000 M2/(50VDC) |
| Recommended Operating Voltage | 5-12 VDC |
| Maximum Operating Voltage | 15VDC |
| Operating Temperature Range | -20~60C |
| Material | Carbon steel, stainless steel |
| Protection Level | IP66/IP67 |
| Cable Length | Φ 5x1.5m |
| Recommended Table Size | 35X45cm;40X50cm |
| Wiring Method | Red: Power +, Black: Power - |
| Green: Signal +, White: Signal - |
FAQ:
▷ How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
▷ Do you offer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
▷ What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
▷ When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
▷ How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
▷ Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
