Multifunction Platform Weighing Scale 200kg 60kg 100kg 150kg With Label Printer Optional
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
Platform Weighing Scale 200kg
,multifunction Platform Weighing Scale
,multifunction 150kg platform scale
60kg 100kg 150kg 200kg Industrial Top Loading Bench Digital Weighing Scale With Label Printer Optional
Description:

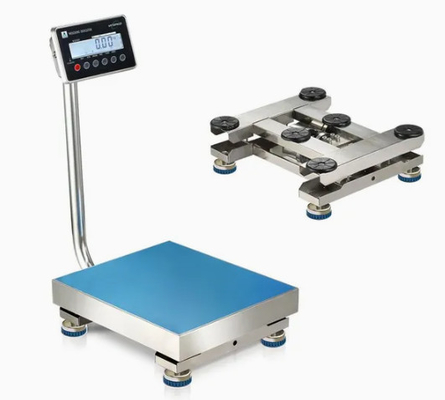

Bench and floor scales with column, characterized by multifunction weight indicator, completely stainless steel structure. Easy to use and versatile, guaranteeing precision and reliability. Particularly suitable for industrial and commercial use.
Feature:
▷ Weight indicator with waterproof IP67 STAINLESS STEEL case.
▷ Backlit 25mm LCD display with 6 high contrast digits and icons for indication of active functions.
▷ Waterproof 5-key functional keypad.
▷ Functions with an aluminium load cell, protected in IP67 stainless steel cover, approved according to OIML R60 C3 standards (3000 divisions).
▷ Stainless steel structure, with adjustable resting feet and level.
▷ Digital calibration and set-up from keypad or from PC with DINITOOLS.
▷ Power supply: 230 Vac power supplier.
Specification:
| Rated Load | 60/100/200/350/500kg |
| Rated Output | 2.0 mV/V±5% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02%R.O. |
| Hysteresis | 0.02%R.O. |
| Repeatability | 0.02%R.O. |
| Creep (30 minutes) | 0.02%R.O. |
| Return to Zero (30 minutes) | 0.02%R.O. |
| Safe Overload Rate | 150%R.O. |
| Ultimate Overload Rate | 200%R.O. |
| Output Temperature Effect | 0.002%R.O./°C |
| Zero Temperature Effect | 0.003%R.O./°C |
| Input Impedance | 410±15Ω:390±15Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000 M2/(50VDC) |
| Recommended Operating Voltage | 5-12 VDC |
| Maximum Operating Voltage | 15VDC |
| Operating Temperature Range | -20~60C |
| Material | Carbon steel, stainless steel |
| Protection Level | IP66/IP67 |
| Cable Length | Φ 5x1.5m |
| Recommended Table Size | 35X45cm;40X50cm |
| Wiring Method | Red: Power +, Black: Power - |
| Green: Signal +, White: Signal - |
FAQ:
▷ How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
▷ Do you offer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
▷ What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
▷ When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
▷ How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
▷ Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
