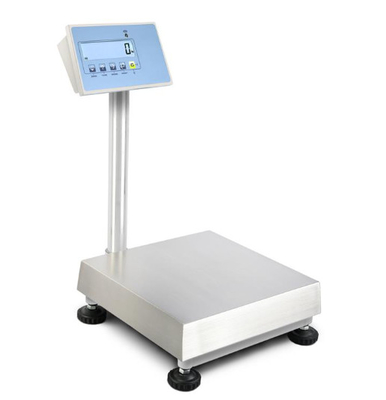

Digital Electronic Bench And Floor Scales Postal Platform Weighing Scale
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
Electronic Bench And Floor Scales
,Digital Bench And Floor Scales
,Electronic Platform Weighing Scale
Portable Digital Electronic Floor Bench Postal Platform Scale
Description:
Bench and floor scales with column, characterized by multifunction weight indicator, completely stainless steel structure. Easy to use and versatile, guaranteeing precision and reliability. Particularly suitable for industrial and commercial use. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.
Features:
· Weight indicator with waterproof IP67 STAINLESS STEEL case.
· Backlit 25mm LCD display with 6 high contrast digits and icons for indication of active functions.
· Waterproof 5-key functional keypad.
· Functions with an aluminium load cell, protected in IP67 stainless steel cover, approved according to OIML R60 C3 standards (3000 divisions).
· Stainless steel structure, with adjustable resting feet and level.
· Stainless steel loading surface, size: see the table.
· Support column, height: 350 mm in the "T" models; 500 mm in the "Q" models; 700 mm in the "X" models.
· Digital calibration and set-up from keypad or from PC with DINITOOLS.
· Power supply: 230 Vac power supplier.
Specification:
| Rated Load | 60/100/200/350/500kg |
| Rated Output | 2.0 mV/V±5% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02%R.O. |
| Hysteresis | 0.02%R.O. |
| Repeatability | 0.02%R.O. |
| Creep (30 minutes) | 0.02%R.O. |
| Return to Zero (30 minutes) | 0.02%R.O. |
| Safe Overload Rate | 150%R.O. |
| Ultimate Overload Rate | 200%R.O. |
| Output Temperature Effect | 0.002%R.O./°C |
| Zero Temperature Effect | 0.003%R.O./°C |
| Input Impedance | 410±15Ω:390±15Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000 M2/(50VDC) |
| Recommended Operating Voltage | 5-12 VDC |
| Maximum Operating Voltage | 15VDC |
| Operating Temperature Range | -20~60C |
| Material | Carbon steel, stainless steel |
| Protection Level | IP66/IP67 |
| Cable Length | Φ 5x1.5m |
| Recommended Table Size | 35X45cm;40X50cm |
| Wiring Method | Red: Power +, Black: Power - |
| Green: Signal +, White: Signal - |
Selectable Functions:
· X 10 high resolution visualisation
· Net/Gross or lb/kg conversion
· Weighs totalisation
· Formulation
· Counting
· +/- Check
· Percentage weighing
· Alibi (with optional interface)
· Hold (freezing the weight on the display)
Keyboard and Printing Functions:
· Keyboard: Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching.
· Printing: Configurable print layout with:
4 heading lines
Gross-Tare-Net and ticket number
Date and time (only with DFCLK)
Print of barcode 39.
