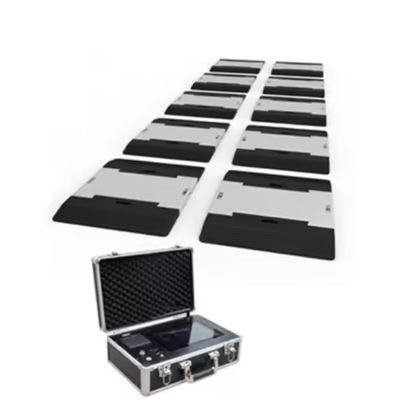

Light Weight Electronic Portable Axle Scale Portable Axle Weight Scale 20T

Electronic Cattle High Quality Handle Portable Weighing Truck Axle Load Scale

Features:

1. Dynamic and static weighing modes;

2. Cable and wireless data transmission;

3. The weighing pads can be equipped with a variety of display instruments, wired and wireless, with push-button screen and touch screen, and the interface is easy to operate;

4. Multiple sealing protection of weighing pads, waterproof and moisture-proof design, ensure normal working in rainy days;

5. The cable axle weigher adopts high strength spring to protect the cable, so don’t have to worry about the rolling of vehicle wheels;

6. Light weight, easy to carry, high precision, good repeatability;

7. High strength aviation aluminum alloy weighing pads, the surface is treated with high quality military aluminum oxidation, wear resistance, corrosion resistance;

8. High quality rubber guide slope, surface non-slip pattern, strong and durable, and the platform using dovetail connection, avoid the platform and the slope off;

9. Made a great contribution to the detection of overload on the road and the weighing of vehicles;

10. It has become an excellent alternative to the truck scale in places where there is only one vehicle available.

Main Technical Index:

(1) Full-scale temperature coefficient: 5ppm/℃
(2) Inner resolution: 24 bits
(3) Sampling speed: 200 times/sec
(4) The speed of display renewal: 12.5times/sec
(5) System non-linearity <0.01%
(6) Impulse source of sensor: DC 5V±2%
(7) Operating temperature range: 0℃--40℃
(8) Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing)
(9) Power supply: built-in 8.4V/20AH leading acid accumulator, and can connect with DC source (8.4V/3A)
