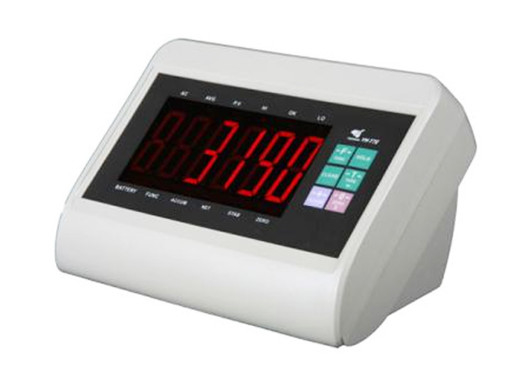

High Precision Digital Weighing Scale Indicator For Electronic Floor Scales
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
High Precision Weighing Scale Indicator
,High Precision digital weight indicator
,Electronic Weighing Scale Indicator
High Precision Weighing Digital Indicator For Electronic Platform Scales, Electronic Floor Scales
Description:
1. Single window 2-inch high-brightness LED display, real "big eyes"
2. Peak hold and average function
3. Automatic/manual accumulation
4. Four-level battery indication, low power alarm and automatic power off
5. High and low limit alarm function, with high and low indication
6. Automatic sleep function
7. Preset tare weight
8. Accurate automatic zoom 10x function
10. High-precision A/D conversion, readability 1/30000
11. AC/DC power supply with built-in 6V/4AH rechargeable battery
12. RS232 interface with selectable baud rate
13. With scoreboard communication interface, 20mA current loop
Drawing Parameters:
Accuracy level: Level 3
Maximum division: 3000
Input signal range: -19mV~19mV
Conversion rate: 10 times/second or more.
Nonlinearity ≤0.0015%.
Sensor connection: 1-4 350Ω sensors can be connected
Score: 1/2/5/10/20/50 (optional)
Communication port: RS232 (serial), 20mA current loop signal connected to scoreboard
Power supply: DC 5V; AC220V; 50, 60Hz (-2%~+2%).
Operating temperature: -10℃~40℃.
Storage/transportation temperature: -25 °C~55 °C
Scoreboard interface.
◆Signal output mode: serial output, current loop signal
◆Baud rate: 600
◆Transmission distance: ≤200 meters
Serial communication interface
◆RS232C
Baud rate: 600/1200/2400/4800/9600 optional
Transmission distance: ≤30 meters
Packing details: 1set in the wooden carton, Special packing accordingly to customer requirement.
FAQ:
1. How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2. Do you offer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3. What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4. When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6. Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
