500kg 1000kg 2000kg 3000kg Shear Beam Load Cell Platform Scale Load Cell
| MOQ: | 1PC |
| Price: | USD10-20000/PC |
| Standard Packaging: | PALLET /PLYWOOD CASE /CONTAINER |
| Delivery Period: | 3-30 days |
| Payment Method: | LC TT WESTERN UNION |
| Supply Capacity: | 10-200 pcs per month |
3000kg Shear Beam Load Cell
,2000kg Shear Beam Load Cell
,1000kg Platform Scale Load Cell

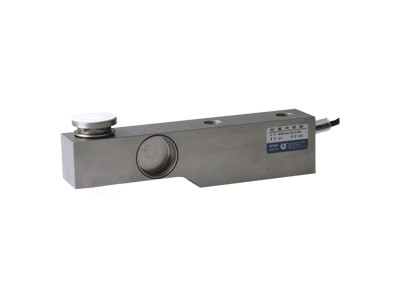

500kg 1000kg 2000kg 3000kg Alloy Steel Structure Shear Beam Load Cell For Platform Scales
Notice:
We have different types of sensors from 20kg-400t, different kinds of sensors and matching power supply and junction box, etc., there are new explosion-proof products for you to choose, you can choose to contact us for your recommendation.
Drawing Parameters:
| Input Impedance | 385±10Ω |
| Output Impedance | 351±2Ω |
| Operation Temperature | -10~+40°C |
| Safe overload | 150%F.S |
| Destructive Load | 200%F.S |
| Excitation Recommended | 4~12VDC, Max:15vDC |
| Cable | Length: 3m Exc+( red), Exc-(black),4-wire with screen |
| Sig+(green), Sig-(White) | |
| Construction | Alloy Steel or Stainless steel, IP67 |
| Application for | Floor scales, weighing module etc. |
Application:
1. Industrial Scales
Used in manufacturing and logistics for weighing products and materials.
2. Retail Scales
Employed in grocery stores and supermarkets for weighing food items.
3. Agriculture
Used in livestock scales to measure the weight of animals for health monitoring and sales.
4. Laboratory Measurements
Utilized in laboratories for precise measurements in experiments and research.
5. Automotive Industry
Applied in vehicle scales for weighing trucks and trailers for compliance with weight regulations.
6. Medical Applications
Used in hospital scales for weighing patients, ensuring accurate dosage of medications based on weight.
7. Transportation
Employed in weighbridges to measure the weight of cargo trucks at loading and unloading points.
8. Food Processing
Used in packaging lines to ensure accurate filling of products into containers.
9. Construction
Used for weighing materials like concrete and aggregates for construction projects.
10. Research and Development
Used in various scientific experiments requiring accurate weight measurements.
